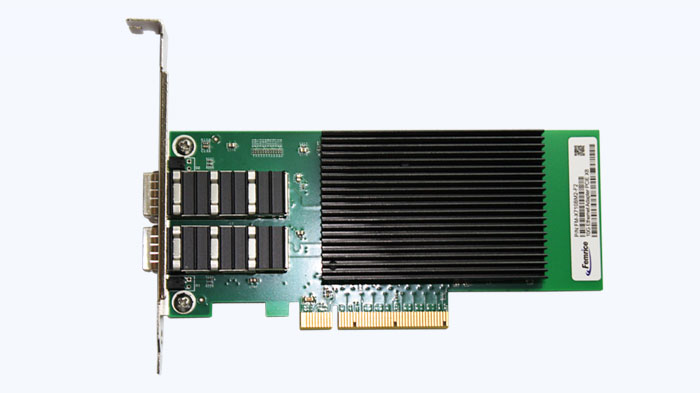

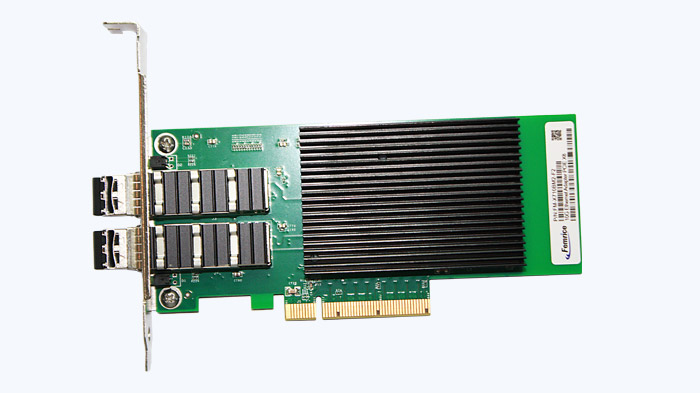

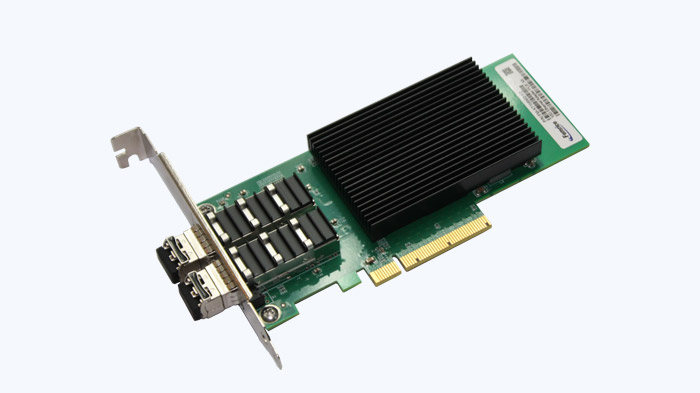

FM-X710BM2-F2 is an Ethernet 10 Gigabit dual optical interface network card. It has two 10G SFP+interfaces, which can support 20Gbps transmission bandwidth, and supports PCI-E X8 standard slots, ensuring the efficient and stable operation of the network card. In addition, the network card also supports VLAN, QOS policy, flow control and other functions, which are suitable for medium and large LAN applications.
Product Overview:
Extending Intel Virtualization Technology Beyond Server Virtualization to the Network with Hardware Optimizations and Offloads for the Rapid Provisioning of Networks in an Agile Data Center.
Key Features
- Dual-port 10GbEadapters
- Supports 2x10GbE configurations
- PCI Express* (PCIe*) 3.0,x8
- Exceptional low poweradapters
- Network Virtualization offloads including VXLAN, NVGRE, and Geneve1
- Intel®Ethernet Flow Director (Intel® Ethernet FD ) for hardware-based application traffic steering
- Data Plane Development Kit (DPDK) optimized for efficient packetprocessing
- Excellent small packet performance for network appliances and Network Functions Virtualization(NFV)
- Intelligent offloads to enable high performance with Intel® Xeon® processor-based servers
- I/O virtualization innovations for maximum performance in a virtualizedserver
- Unified networking providing a single wire support for LAN and storage:NAS
Leading 10 GbE Performance
- Small Packet Performance: Maintains wire-rate throughput on smaller payloadsizes
- BulkTransfer Performance: Delivers line-rate performance with low CPU usage for large application buffers
- Virtualized Performance:Alleviates hypervisor I/O bottlenecks by providing flow separation for Virtual Machines(VMs)
- Network Virtualization:Network virtualization overlay offloads including VXLAN, NVGRE,andGeneve
- Storage Performance:Enables competitive performance withnative
OS drivers and intelligent offload for NAS (NFS, SMB), and SAN (iSCSI)
Basic Information:
| Products Name |
10Gbps Quad Port Gigabit Ethernet Server Network Card |
| Products Type |
FM-X710BM2-F2 |
| Chipset |
Intel X710-BM2 |
| Bus Interface |
x8 (x16) PCIe* 3.0 |
| Whole Duplex |
Compatible Whole Duplex and Half Duplex |
| Network Interface Type |
SFP+ Slot*2, LC Fiber |
| Transmission Speed |
10Gbps |
| Transmission Medium Type |
LC Fiber, Comply with MMF62.5/50 Micron |
| Network Standard |
IEEE802.3 10GBASE-SR,10GBASE-LR |
| Date Rate |
10G/s |
| Fiber Module |
10G-SFP+-SR/10G-SFP+-LR |
| Long-range Awaken Function |
Support |
| Operating System |
IA-32 |
X86-64 |
IA-64 |
| Windows Server2012 R2* |
N/A |
X |
N/A |
| Windows Server2012 R2 Core |
N/A |
X |
N/A |
| Windows Server2012 |
N/A |
X |
N/A |
| Windows Server2012 Core |
N/A |
X |
N/A |
| Windows Server2008 R2* |
N/A |
X |
N |
| Windows Server2008 R2 Core |
N/A |
X |
N |
| Linux* Stable Kernel Version 2.6/4x |
N/A |
X |
X |
| Linux RHEL 6.6,6.7 and 6.8 |
N/A |
X |
X |
| Linux SLES 11 SP4 and SLES 12SP1 |
N/A |
X |
X |
| FreeBSD* 10.2/10.3/11 |
N/A |
X |
X |
| UEFI*2.1 |
N/A |
X |
X |
| UEFI*2.3 And 2.4 |
N/A |
X |
X |
| VM Ware ESXI 2.1(Limited Functionality) |
N/A |
X |
N/A |
| VM Ware ESXI 5.5 |
N/A |
X |
N/A |
| Working Humidity |
85% |
Storage Temperature |
-40 °C to 70 °C (-40 °F to 158 °F) |
| Working Temperature |
0 °C to 55 °C (32 °F to 131 °F) |
Storage Humidity |
Maximum: 90% non-condensing relative humidity at 35 ° |
| Length |
13.3cm |
Full-height Bracket |
12cm |
| Width |
6.8cm |
Low-profile Bracket |
8cm |

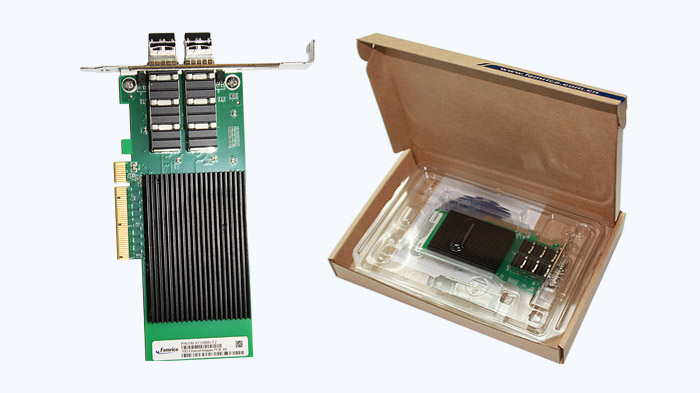

| Packing Standard Size (Unit) |
23cm*14.6cm*2.7cm |
Server Virtualization: VMDq for Emulated Pat,SR-IOV for Direct Assignment,VEPA,VEB: Intelligent Offloads: TCP Stateless Offload,Host iSCSI Initiator,Flow Classification
Power Savings
Power efficiency is critical to IT specialists as energy consumption is a real OpEx concern.
LAN/SAN for Today’s Data Centers
- Data: Best effort delivery of standard LANtraffic
- Storage:Lossless network for iSCSI
Management: Guaranteed connectivity of dat
